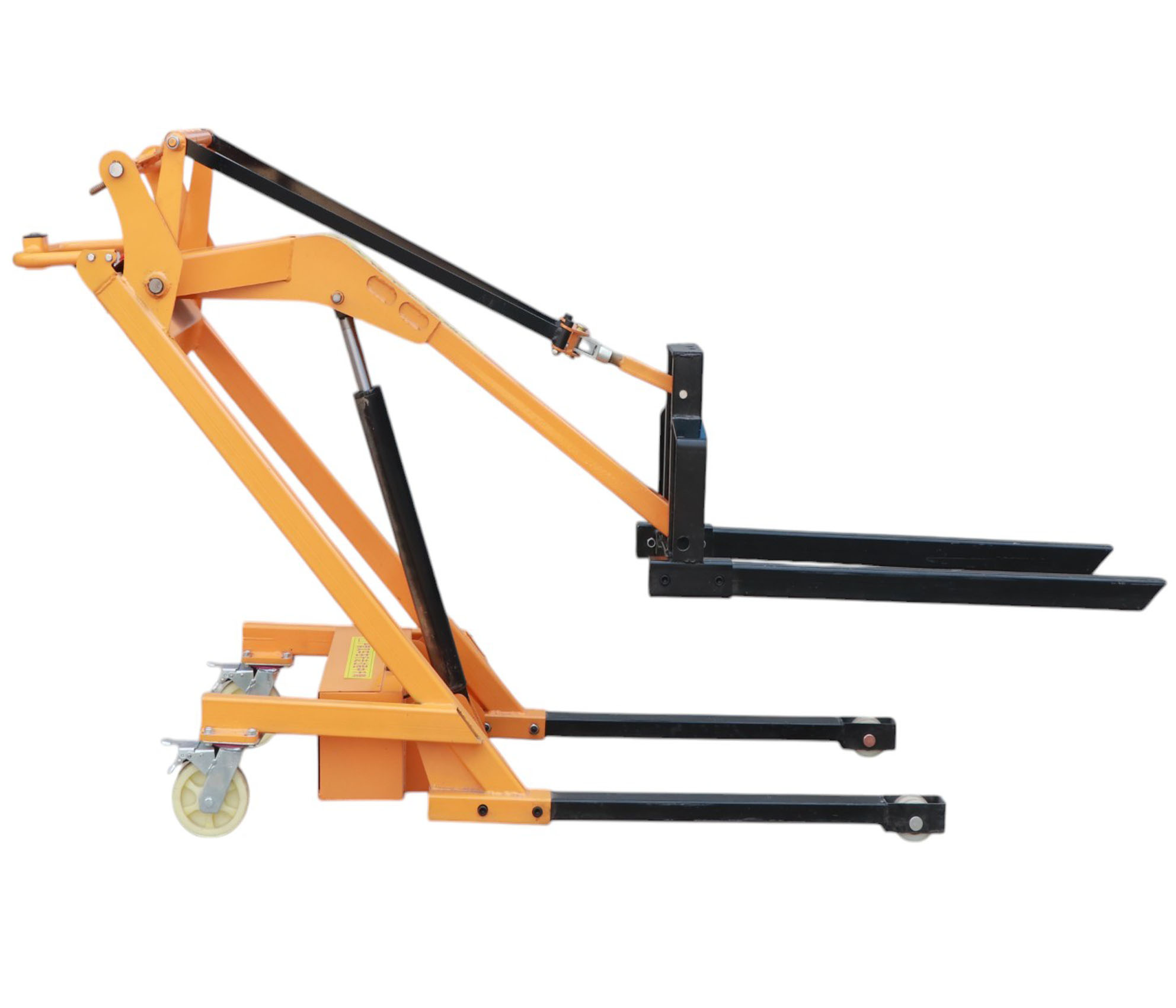

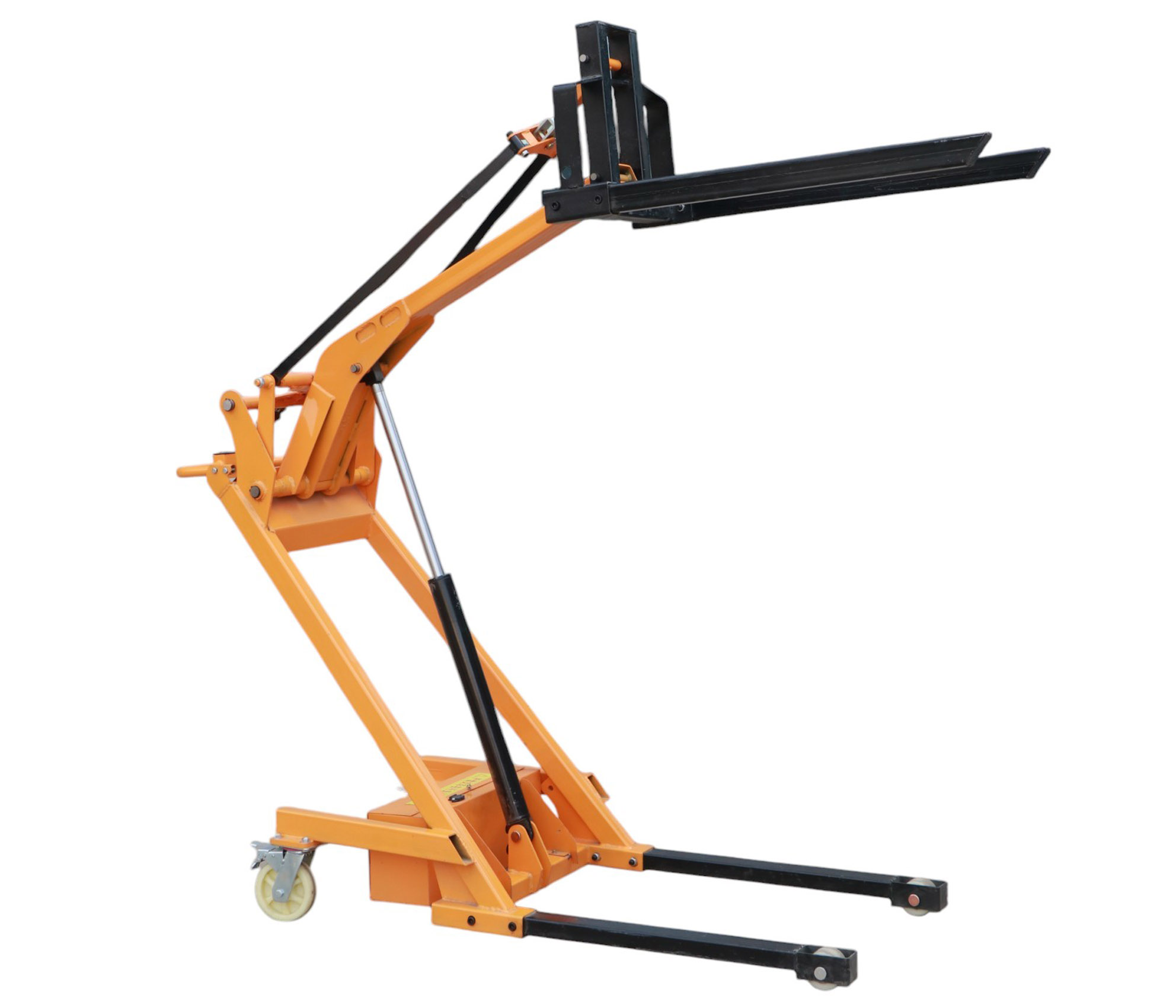

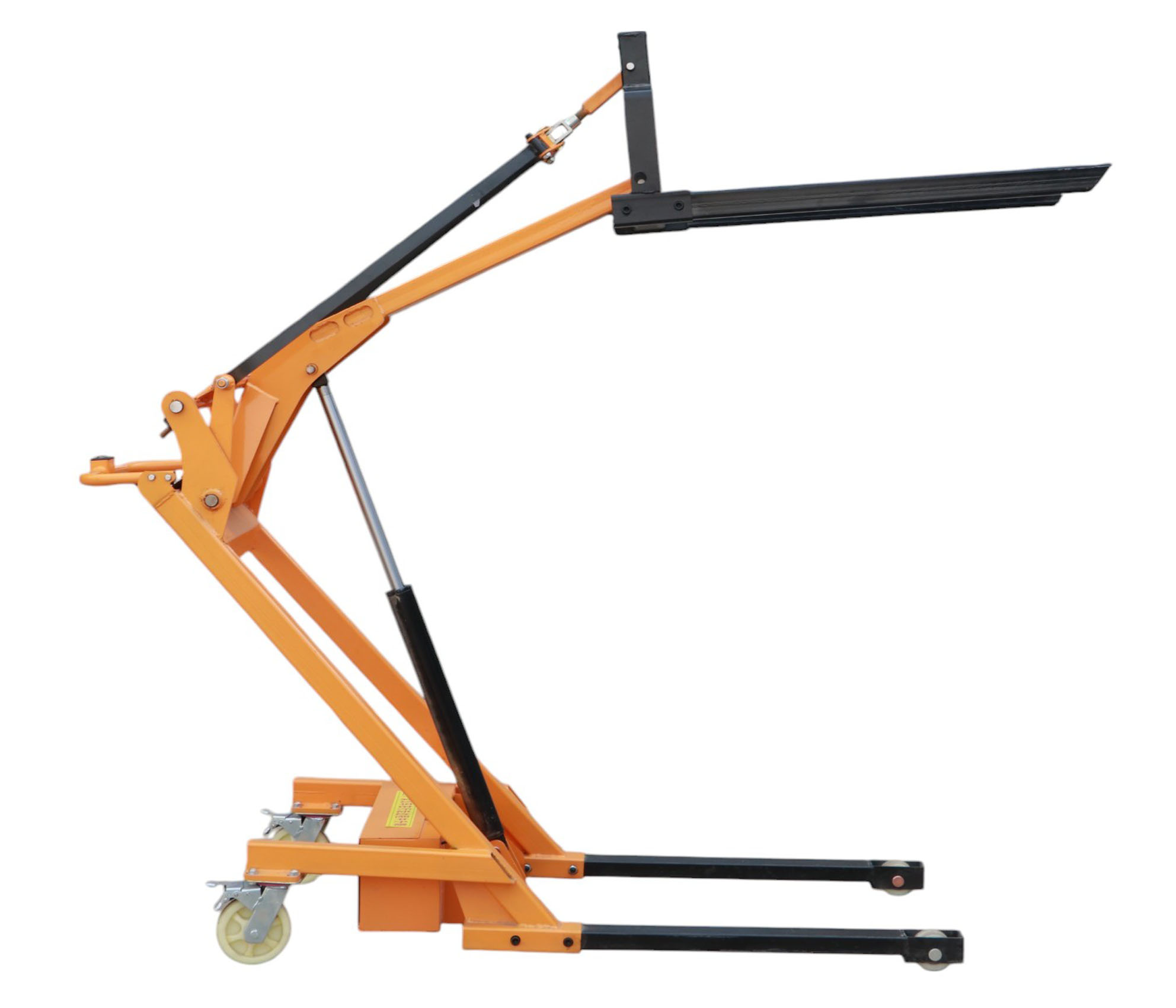

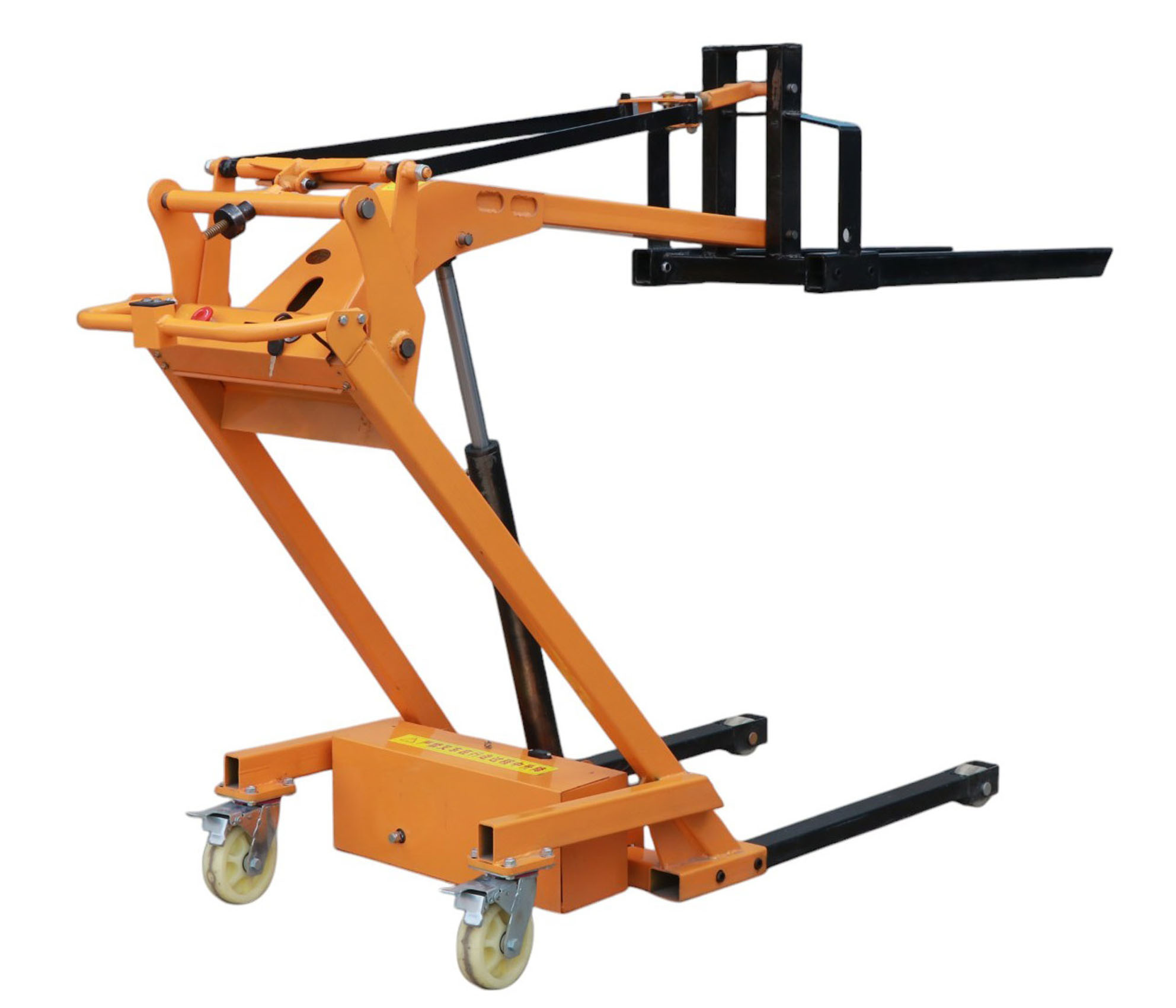

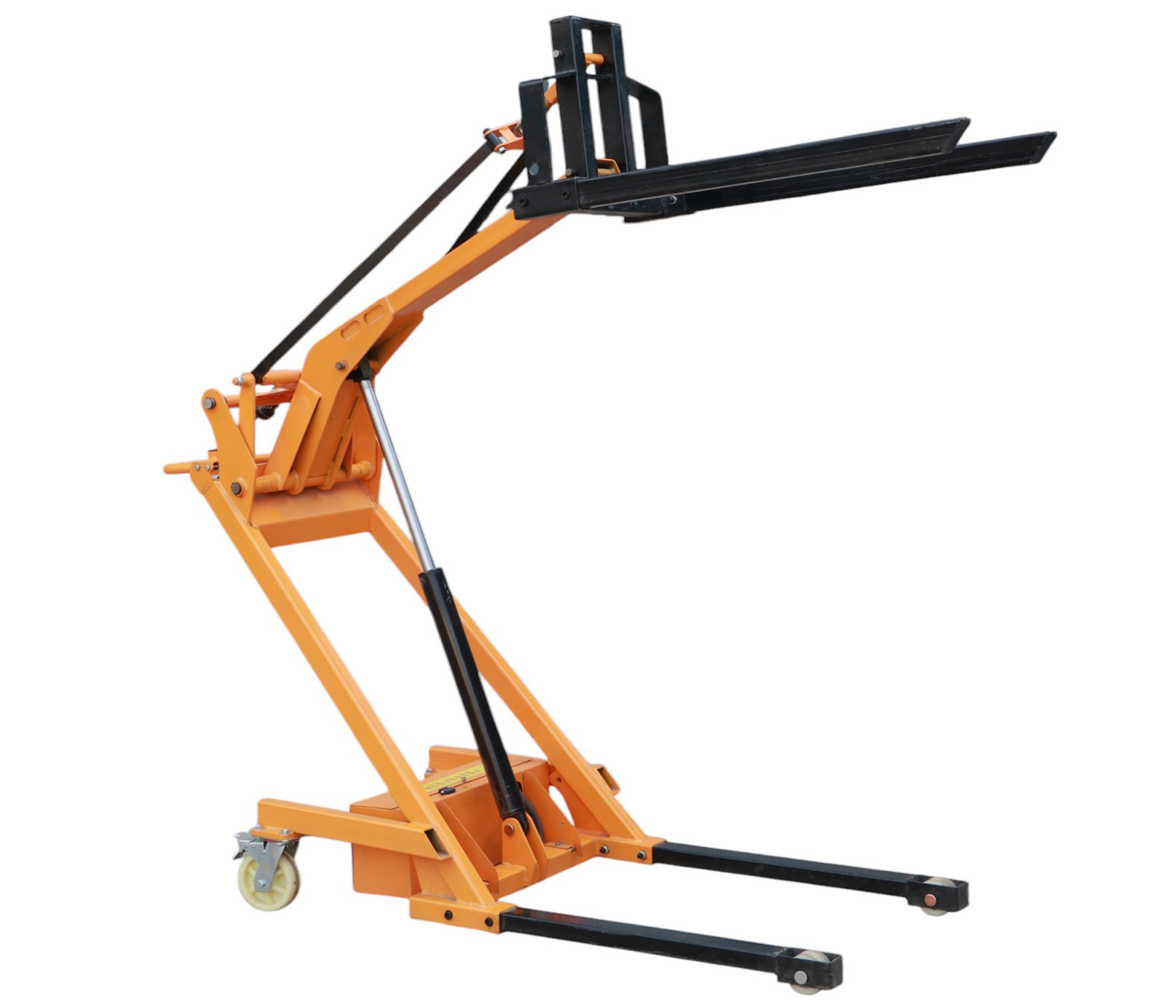

The Kaiston supplird Portable Forklift with High flexibility,Change in load-bearing center of gravity and Three functions in one machine.
High flexibility: It has a compact size and can be operated flexibly in narrow spaces, such as in the aisles of warehouses and inside truck compartments. Moreover, the portable articulated forklift can be folded, which doesn't take up too much space and can be carried along with the vehicle.
Change in load-bearing center of gravity: Goods with a relatively large volume may cause the center of gravity of the equipment to shift. For forklifts, if the volume of the goods is too large and the center of gravity exceeds the stable range designed for the forklift, in order to prevent dangerous situations such as rollovers, it will be necessary to reduce the load-bearing capacity. This is because the stability of the equipment restricts the weight it can carry. Once the center of gravity changes, considering the safety factor, the actual available load-bearing capacity will decrease
Three functions in one machine: The portable articulated forklift can be optionally equipped with three types of forks to correspond to different usage scenarios. The forks are divided into pallet forks, hooks and drum clamps.
Item No. | Load Capacity | Lifting Height | Fork Length | Fork Width | Tine width | Motor Power | Battery | Endurance | Overall Size | N.W. | Package Size |
KU500-1 | 500KG | 1700MM | 850MM | 500MM | 50MM | 800W | Lead Acid Battery | 4-6h | 2100*700*1200MM | 140KG | 970*750*1350MM |
KU500-2 | 250KG | 2100MM | 850MM | 500MM | 50MM | 800W | Lead Acid Battery | 4-6h | 2100*700*1200MM | 140KG | 970*750*1350MM |
KU500-3 | 200KG | 1500MM | 880MM | 500MM | 50MM | 800W | Lead Acid Battery | 4-6h | 2100*700*1200MM | 140KG | 970*750*1350MM |
KU500-4 | 500KG | 1500MM | 875MM | 480MM | 50MM | 800W | Lithium Battery | 4-6h | 1800*650*1100MM | 150KG | 970*750*1350MM |
